GraphQL query parsing and validation?

Lexing and Parsing

Mon, 24 Jun 2019

Abstract

The main aim of this article is to show how a GraphQL query is parsed and validated before execution. Here, I assume the reader knows about what is GraphQL?; how to compose GraphQL schema?; what is GraphQL query? and what are resolvers, mutations and subscriptions? If you are not familiar with these concepts, I suggest you read my previous article first.

Keywords:

Software service architecture, RESTful, GraphQL, GraphQL architecture, Query, mutations, resolvers.

1. Introduction

A few weeks ago, I wrote an article about how to get started with GraphQL [2] and its main working paradigm. Here is the link to Part 1 of article: How to get started with GraphQL?. This article uses images extracted from medium post by Christian Joudrey [5].

As mentioned in the previous post, GraphQL query systems provides flexibility to the clients to formulate and query backend. Having said that, let us look at GraphQL Query given below:

query getPatient {
  Patient(_id: "5cdbe44c25c6150ac290fe87") {
   	id
    resourceType
    name {
      use
      family
      given
    }
    gender

  }
}

In order to get results from above query, it undergoes several steps including query parsing, query lexing, query validation and then query execution as shown in figure 1. Let us examine each steps closely.

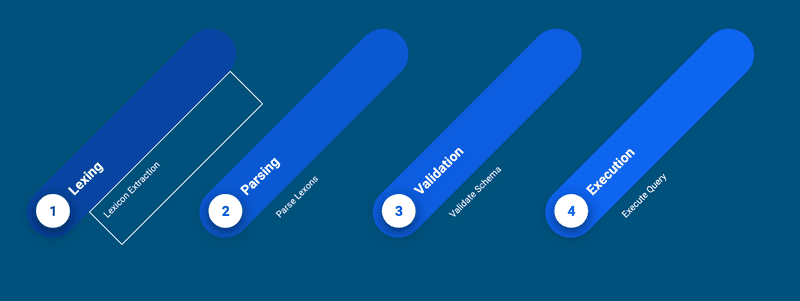

GraphQL Query Parsing, Execution
Fig.1 - GraphQL Query Parsing, Lexing, Validation and Execution

2. Lexing

When a client execute a GraphQL query (via an HTTP Request), the first thing the server needs to do is transform the query into comprehensible format. This process is known as lexing and parsing. Lexing or lexical analysis is the process of breaking up a stream of character into tokens.

An Example of lexing of a GraphQL Query
Fig.2 - An Example of lexing of a GraphQL Query

The rules the GraphQL lexer uses to split up the query are defined in the GraphQL grammar. Lexer for GraphQL can be found in the library for interested user to understand how lexing actually works. The core of the lexer is based on regular expressions. The lexer analyzes the query string, and whenever it finds a token that matches a regular expression on the left, the action on the right are executed.

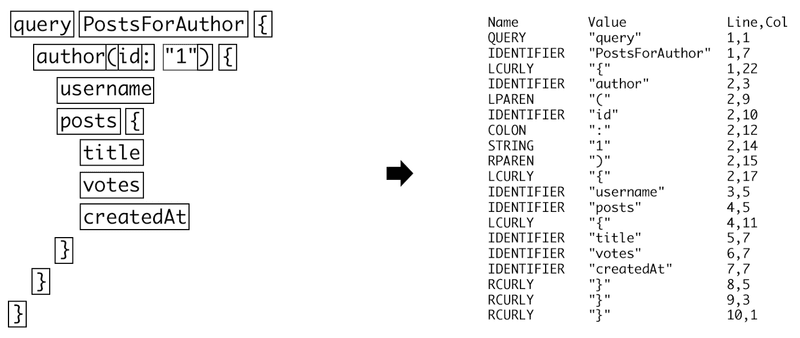

Query (left) and tokens (right)
Fig.3 - Query (left) and tokens (right)

As illustrated in the figure 3, none of the whitespaces are shown in the token list. This is because spaces and tabs are part of the ignored tokens in the GraphQL grammar rule. After lexer, the sequences of tokens are turned into a more abstract form. This step is called parsing.

3. Parsing

The rules for parser are defined in the GraphQL Grammar. The rules defined in the Grammar are very comprehensive and helps the readers to better understand the language.

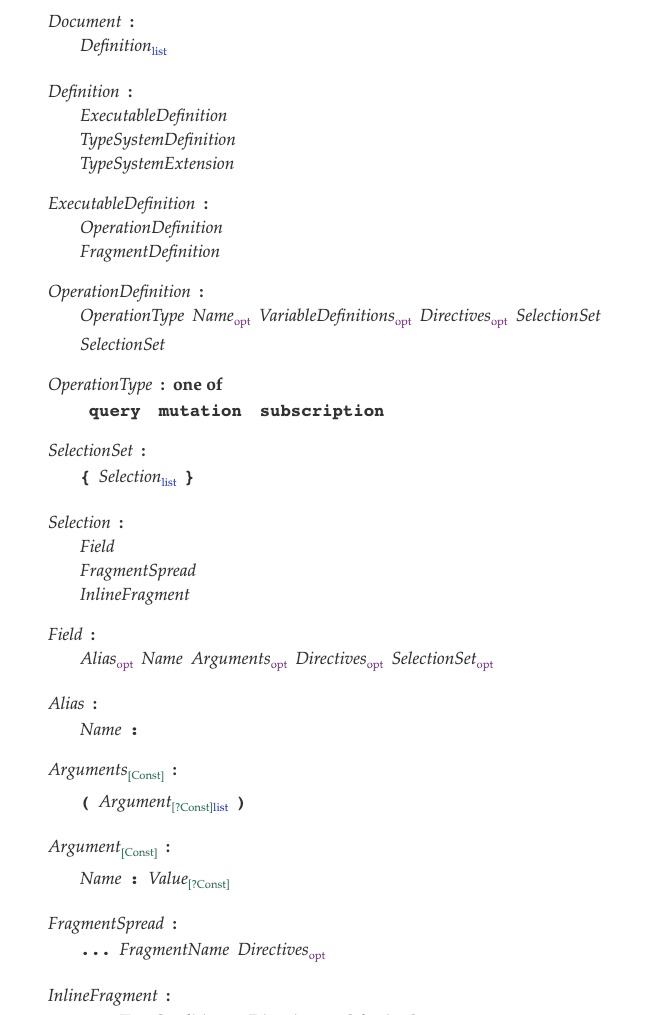

GraphQL Grammar Excerpt
Fig.4 - GraphQL Grammar Excerpt

Here is what the excerpt in figure 4 is saying:

  • The root of all GraphQL queries is known as a Document.
  • A Document has one or many Definition.
  • A Definition can be either a ExecutableDefinition or TypeSystemDefinition or TypeSystemExtension.
  • An ExecutableDefinition can be OperationDefinition or FragmentDefinition.
  • An OperationDefinition is either a SelectionSet or OperationType optionally followed by Name or optionally followed by VariableDefinition or optionally followed by Directives or SelectionSet.
  • A SelectionSet has one or many Selection.
  • A Selection can be Field or FragmentSpread or InlineFragment and so on.

Multiple rules depend on other rules and the Grammar defines all of them. If you continue reading the rules, ultimately the token starts appearing. For example, the rule for OperationType states that it can be one of the following query, mutation or subscriptions [2]. This is what we discussed in the previous article.

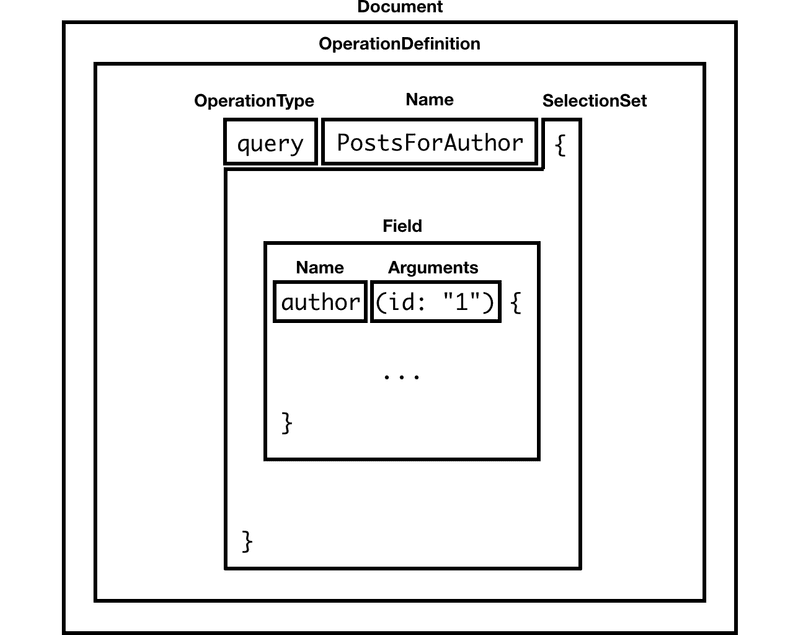

Parser Visual Representation
Fig.5 - Parser Visual Representation

Figure 5 shows a visual representation of the example query above once it is been parsed out. If you are interested more in learning about how parser has been implemented in GraphQL, here is the file one should be looking into. After parsing, the structure we get is referred to as Abstract Syntax Tree (AST) [4].

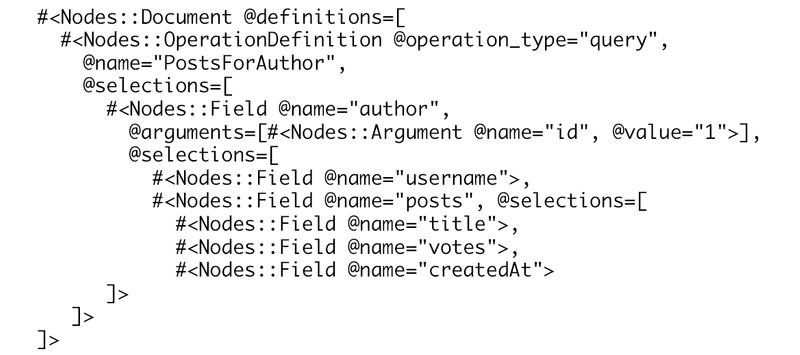

For the query given below, the AST looks like one in the figure 6:

query PostsForAuthor {
  author(id: "1") {
    username
    posts {
      title
      votes
      createdAt
    }
  }
}
Abstract Syntax Tree
Fig.6 - Abstract Syntax Tree

The next step in the query execution is query validation which is discussed in the next section. In order to get deeper understanding of the lexers, parsers and AST, I recommend the reader to read COMPILER DESIGN: SYNTACTIC AND SEMANTIC ANALYSIS by: Reinhard Wilhelm, Helmut Seidl, Sebastian Hack.

4. Validation

Figure 6 shows the AST of the example query. At this point, it is clear that the query is syntactically correct. But it does not mean, it is executable. There could be plethora of issues with it:

  • The Author type could well not have a username field.
  • The argument id could not have type Int.
  • The SelectionSet for posts may not have one or many valid field.

The parser doesn’t care about these phases. It is the job of the validation phase. The GraphQL specification has entire section that covers about the validation. There are several implementations for GraphQL query validation including JS version. When it comes to the validation, there is one thing that is common: the visitor pattern. While Wikipedia provides a theoretical explanation of the visitor pattern, I’d like to explore how it’s used in GraphQL implementations to power the validation phase. We’ll also look at some sample code from GraphQL.js.

First, let’s start with a simple query and its AST representation:

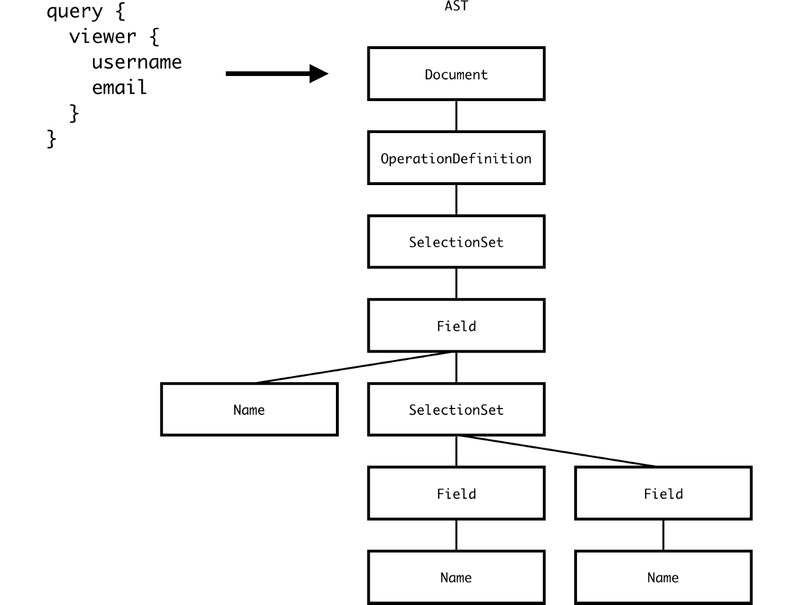

Abstract Syntax Tree validation
Fig.7 - Abstract Syntax Tree Tree validation

In order to determine whether the query can be executed or not, GraphQL.js validate function will traverse the AST using a depth-first traversal. In other words, it will start at the root of the AST (in this case, the Document node) and it will explore as far as possible along the first branch before backtracking and continuing on to the next branch.

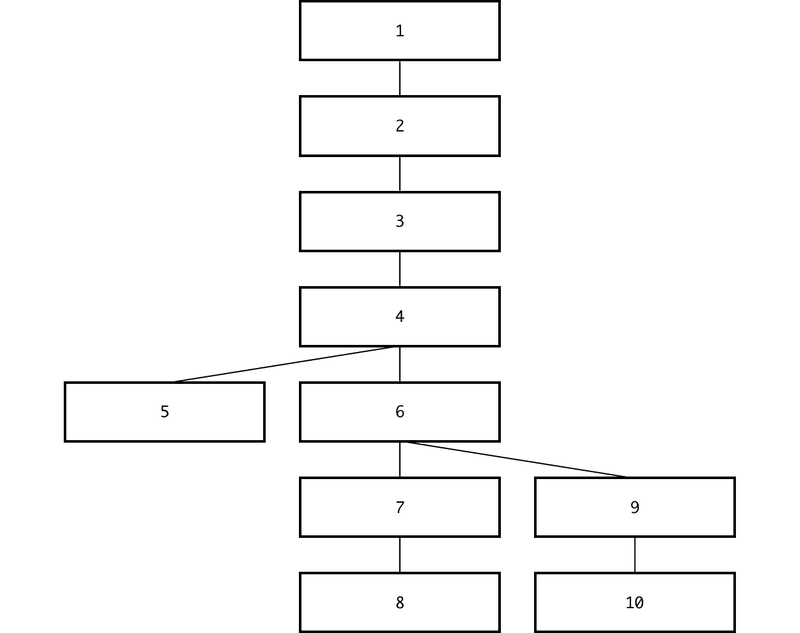

Depth-first traversal of our example query
Fig.8 - Depth-first traversal of our example query

Visitors (in this case, validations rules) can watch as the AST is being traversed and perform actions when a certain type of node is reached. In GraphQL.js, visitors can be implemented in different ways, but in their simplest form they are an object with a enter and leave function.

During the traversal, when a node is reached the enter function of the visitor will get called. When backtracking, the visitor’s leave function gets called.

Here’s a simple visitor that logs whenever a node is entered or left. Notice in this example we are using GraphQL.js visit function to traverse the AST. This is the same function that validate uses.

import { visit } from "graphql/language/visitor";
import { parse } from "graphql/language";

const query = `
  query {
    viewer {
      username
      email
    }
  }
`;

var indent = "";

var visitor = {
  enter(node) {
    console.log(`${indent}Enter ${node.kind}`);
    indent = indent + "  ";
  },

  leave(node) {
    indent = indent.substring(0, indent.length - 2);
    console.log(`${indent}Leave ${node.kind}`);
  }
};

visit(parse(query), visitor);

// Output:
//
// Enter Document
//   Enter OperationDefinition
//     Enter SelectionSet
//       Enter Field
//         Enter Name
//         Leave Name
//         Enter SelectionSet
//           Enter Field
//             Enter Name
//             Leave Name
//           Leave Field
//           Enter Field
//             Enter Name
//             Leave Name
//           Leave Field
//         Leave SelectionSet
//       Leave Field
//     Leave SelectionSet
//   Leave OperationDefinition
// Leave Document

Some GraphQL rules might only be interested by a specific type of node. For example, a rule might want to validate that an OperationDefinition always has a name (i.e. query Name { .. }.) For this reason each GraphQL.js rule can decide to hook onto individual types of nodes. This can be done by nesting the enter and leave functions under a key named the same as the kind of AST node of interest.

Here’s an example of a visitor that only cares about when an OperationDefinition node is entered:

import { visit } from "graphql/language/visitor";
import { parse } from "graphql/language";

const query = `
  query FetchViewerUsernameAndEmail {
    viewer {
      username
      email
    }
  }
`;

var visitor = {
  OperationDefinition: {
    enter(node) {
      console.log(node);
    }
  }
};

visit(parse(query), visitor);

// Output:
//
// { kind: 'OperationDefinition',
//   operation: 'query',
//   name:
//    { kind: 'Name',
//      value: 'FetchViewerUsernameAndEmail',
//      loc: { start: 9, end: 36 } },
//   variableDefinitions: [],
//   directives: [],
//   selectionSet:
//    { kind: 'SelectionSet',
//      selections: [ [Object] ],
//      loc: { start: 37, end: 88 } },
//   loc: { start: 3, end: 88 } }

The OperationDefinition key in the above example can be replaced with any valid AST node kind to observe that kind of node. A visitor can also observe multiple node kinds at once by setting the corresponding keys.

Now that we have a better understanding of the visitor pattern and how visitors are implemented in GraphQL.js, we can add the missing parts to turn this visitor into a GraphQL.js validation rule.

import { GraphQLError } from "graphql/error";

function OperationHasName(context) {
  return {
    OperationDefinition: {
      enter(node) {
        if (!node.name) {
          context.reportError(
            new GraphQLError(
              `The operation \`${node.operation}\` is missing a name.`,
              [node]
            )
          );
        }
      }
    }
  };
}

If you’re interested in learning more about the validation phase, check out GraphQL.js’ inside src/validation folder. A lot of what was discussed is explained as comments in the code.

5. Execution

Once the query is validated against these rules, it is simply executed. The resolvers then fetches the data from backend and responds back to the user.

6. Conclusion

GraphQL is a protocol and a query language. GraphQL API [1] can access data stores directly but for most use cases GraphQL API is a data aggregator and an abstraction layer. The layer that improves velocity of development, decreases maintenance and makes developers happier. For these reasons, GraphQL makes even more sense for a public API. GraphQL is meant to be used for client applications, where network bandwidth and latency are critical. It provides clients, the ability to query an object graph (a hierarchical structure of related objects). Using GraphQL, clients also get to choose what fields need to be included in the response. This makes it a whole lot simpler and easier to use and manage data fetching on the client’s end.
